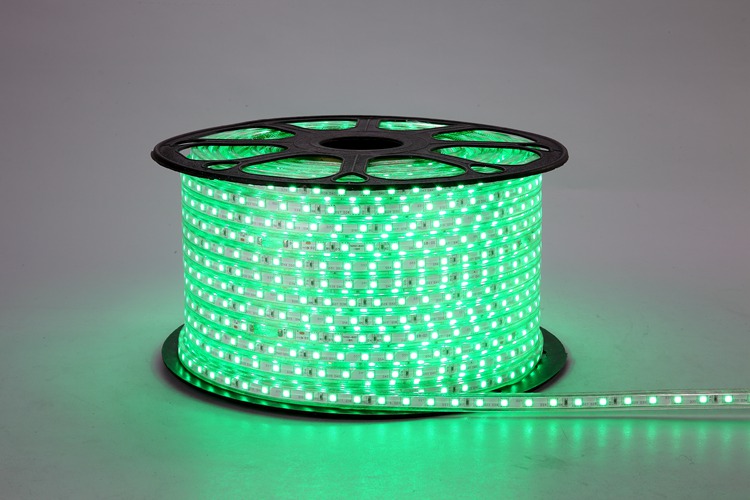

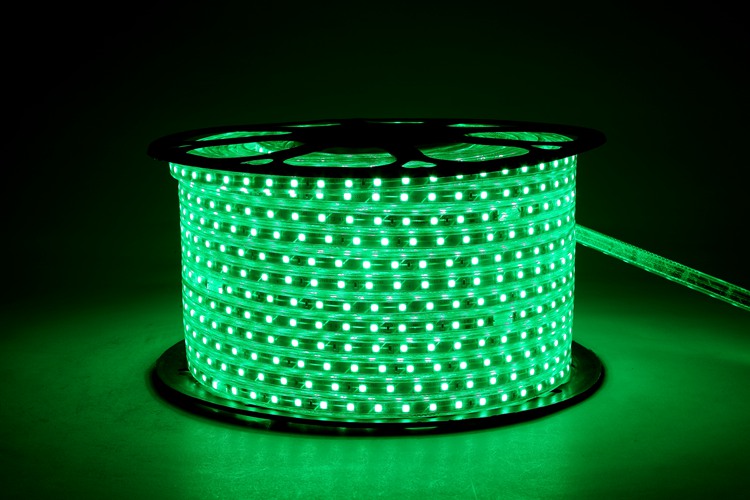

The Green LED Tape Light utilizes a narrow strip of flexible printed circuit board (FPC) with SMD LEDs uniformly mounted on the surface and covered with a silicone/PU transparent layer. The backside is backed with 3M industrial adhesive. Supplied in rolls, it can be cut and spliced on-site according to the onboard markings. It is a flexible linear light that emits pure green light.
The Green Led Tape Light utilizes carefully selected green light chips with a dominant wavelength of 525±5nm, a half-width (FWHM) of ≤30nm, and a color tolerance of <3 SDCM. Color variation within a batch is manageable, meeting the requirements for highly consistent brand primary colors for display and wayfinding.
The Green Led Tape Light offers an optional 120/180 LED/meter arrangement, with a typical luminous flux of 800–1200 lm/meter and a 120° beam angle. When used with aluminum profiles, it creates a continuous light strip with no noticeable graininess, making it suitable for displays and wall washing.
Power ranges cover 9.6/12/14.4 W/m, with a system efficacy of ≥90 lm/W. The 24V version offers a single-ended continuous operation of ≤10m with a voltage drop of less than 8%, making it more energy-efficient and stable in long-haul applications.
2oz thick copper FPC and ≥70% LED driver current redundancy achieve an L80 of >50,000 hours. Operating temperature ranges from -20°C to +50°C, and humidity and heat cycling have passed 48-hour reliability testing, ensuring worry-free maintenance.
Indoor IP20, surface-coated IP65, and extruded silicone fully encapsulated IP67/IP68 are optional. The outer coating is UV and salt spray resistant, with 12-month outdoor resistance to yellowing. It comes with IK08 impact-resistant end caps.
The Green Led Tape Light supports DC12V/24V power supply and a standard 2-pin quick-connect connector. It is compatible with PWM (1–8kHz), 0–10V, DALI, and DMX dimming, offering flicker-free photography and easy integration into commercial control systems.
The backing is 3M 300LSE adhesive with stainless steel clips. Widths are 8/10/12mm, with a minimum bend radius ≥30mm. Cutting spacing is 25/50mm, and the tail is pre-soldered with 20AWG cable, making on-site installation fast.
For wall troughs and shelf outlines, the recommended design is 24V, 120 LEDs/meter, 9.6W/meter, and IP20 certified. The 525nm green light matches the brand's display color palette, and the 50mm cutout allows for easy alignment with display modules. DALI group control ensures uniform brightness throughout the store.
8mm wide, 12W/m, PWM 2kHz version Green LED Tape Lights are used on the bottom edge of the bar counter and the menu light box. The adhesive backing is applied directly without visible adhesive. The 5m single-path wiring is neat and streak-free for live video streaming. The green light emphasizes the environmental theme and menu guidance.
The Green LED Tape Lights utilize an IP65-rated adhesive-coated design. 24V, 10m single-section installation reduces power points and provides a brightness of ≥900 lm/m. The green light strips are color-coded with the signage system, allowing passengers to easily identify their entrance path from a distance.
The Green LED Tape Lights utilize an IP67 extruded silicone design with a 14.4W/m output for enhanced water reflection. The -20°C to +50°C temperature range ensures year-round stability. Stainless steel clips secure the lights, ensuring long-term reliability in humid environments.
The booth's edges feature 180 LEDs per meter, 10mm wide, and PWM 4kHz versions of Green LED Tape Lights. The strips are detailed and smooth, without harsh spots. Linked to a DMX console, they offer smooth 0–100% dimming when switching between presentation scenes, ensuring camera-friendly operation.
The end heads and promotional islands feature 24V, 9.6W/meter, IP20 certified indoor Green LED Tape Lights. The 10m-long cable with low voltage drop ensures consistent brightness across a row of shelves. The dual adhesive backing and snap-on design prevents them from falling off in high-traffic environments, facilitating cross-store replication and standardization.
